Delta 12151 - 173 MHz ISM Terminal Mount Whip Antenna

The Delta 12 antenna range are ¼ wave ISM whip antennas. This style of antenna is offered in a number of different frequencies covering the popular ISM bands.

This antenna is perfect for high volume ISM applications within the mobile applications world. The Delta 12 is tuned to the ISM (Industrial, Scientific and Medical) radio frequency bands of 151 MHz and 173 MHz.

Key Features

• Range of ISM frequency bands available
• 3 dBi gain
• 150 mm whip antenna
• ¼ wave radiating element
• Ideal for high volume ISM applications

Electrical Specifications

• Frequency: 151 MHz, 173 MHz
• Operating Temperature: -30˚C – +75˚C
• Impedance: 50 Ohm
• VSWR: <2
• Gain: 3dBi
• Polarization: Vertical
• Radiation: 1/4 Wave whip
• Max input power: 50 W

Mechanical Specifications

• Dimensions: L150 mm

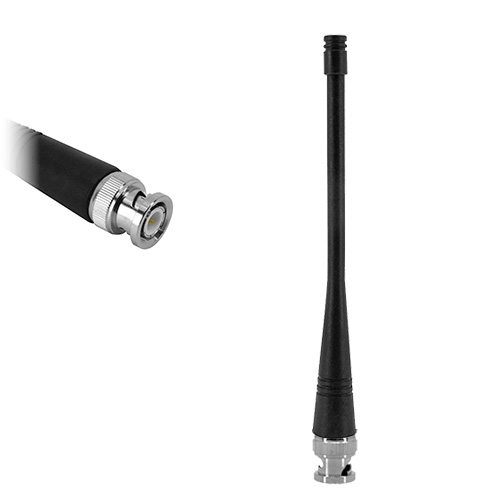

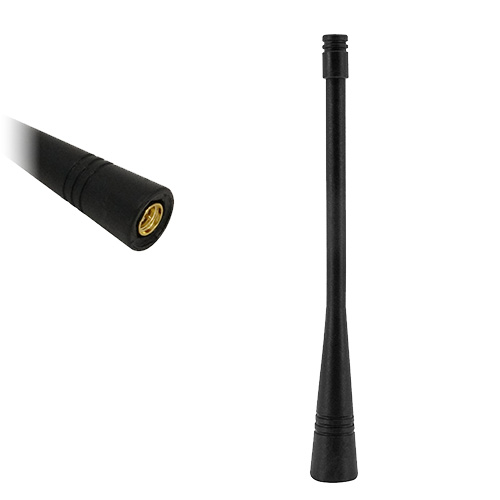

• Connector: SMA Male / BNC Male
• Mounting Method: Direct connect
