Delta 22A868 MHz ISM Direct Connect 95mm Hinged Antenna

The Delta 22A is a dedicated 868 MHz European ISM band antenna which combines good performance with a small size, enabling its use for Short Rangem Devices and RFID.

Terminated with an SMA male connector, it is ideally suited to applications requiring a simple, cable free set up for RFID readers or Short Range Devices within Europe.

The knuckle design allows the antenna to be positioned to take best advantage of the incoming signal.

Allowing straight, 45° and 90° positions along with 360° rotation. The omni directional, radiating element is capped with a black high- grade rubber mould

• Dedicated ISM Antenna
• ISM Band: 868MHz
• Small Antenna size with 3dBi Gain


2G
GSM
3G
UMTS
4G
LTE
5G
New Radio
D
Direct
HNT
Helium
IEEE
802.15.4
ISM
5800
ISM
868
LTE
Cat M1
LTE
NB1
LoRa
Wireless
SF
Sigfox
W
Weightless
WIFI 4
802.11n
WIFI 5
802.11ac
WIFI 6
802.11ax
WIFI
5G
WLAN
5800
ZB
Zigbee
z
wave


RoHS
Compliant

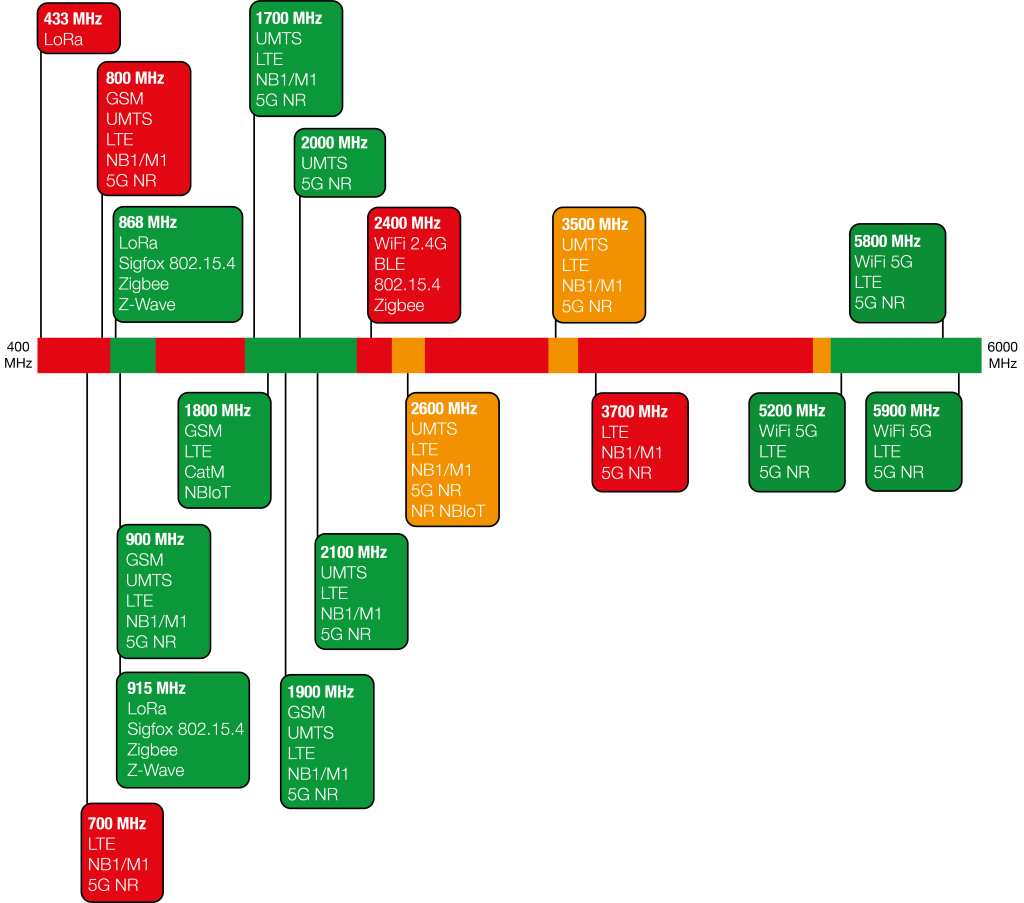

Spectral Frequency Diagram

The Spectral View Diagram visually describes the performance of the antenna from 400 MHz to 6000 MHz. Key frequencies are marked highlighting the technology used and the colour represents the performance at that frequency taking in to consideration the VSWR and radiated efficiency of the antenna.

Green is considered a suitable band, amber is adequate in good signal conditions and red is likely to be unsuitable.



Datasheets

Delta 22A Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots
IP Rating Guide

Ordering Information

Siretta Part Number: DELTA22A/X/SMAM/S/S/20
Description: 868 MHz ISM Direct Connect 95mm Hinged Antenna SMA Male
