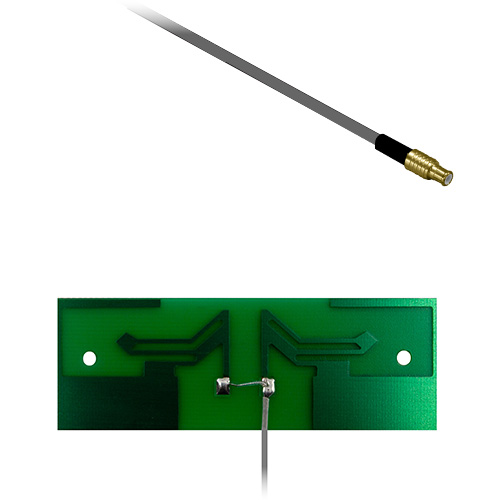

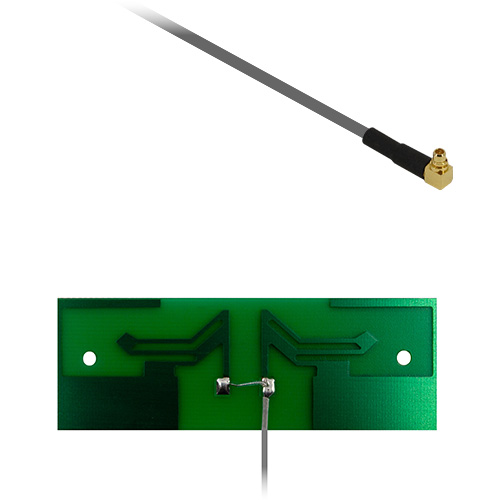

Echo 22G/3G/4G/WiFi compact 1/4 wave dipole PCB Antenna

The Echo 2 antenna is perfect for applications that require a sensitive compact embedded solution. Already proven in many applications where space is at a premium, this antenna is ideal as it is ground plane independent and compact making it a popular choice where a small size combined with efficient performance is critical.

Many small PCB antennas are a half dipole and where they really need a ground plane to be effective. The Echo 2 PCB antennas are based on an efficiently tuned, full dipole antenna element that can be used very effectively with a wide variety of RF & M2M modules operating on Cellular, 868 and 2.4GHz ISM band frequencies

• Compact size
• Wide frequency range: 800MHz – 2.4GHz
• Ground plane independent


2G
GSM
3G
UMTS
4G
LTE
BLE
Bluetooth
E
Embedded
ISM
2450
ISM
868
WLAN
2400
ZB
Zigbee


RoHS
Compliant

Datasheets

Echo 2 Datasheet

Additional Antenna Resources

Antenna Fact Sheet
Understanding Antenna Theory
Antenna 2D Radiation Plot Guide
Visual Guide to Radiation Plots

Ordering Information

Siretta Part Number: ECHO2/0.1M/UFL/S/S/1
Description: 2G/3G/4G/WiFi compact 1/4 wave dipole PCB Antenna

Request For Quote

Alternative cable lengths and connector types can be specified for volume orders
